Z-BOX app (iOS & Android)
Pair via Bluetooth out of the box, then optionally connect over Wi-Fi for remote control. Start/stop, scheduled and weekly charging plans, max-kWh per session, 20-day and 12-month history.
SEAI-registered · OZEV-approved · CE & UKCA

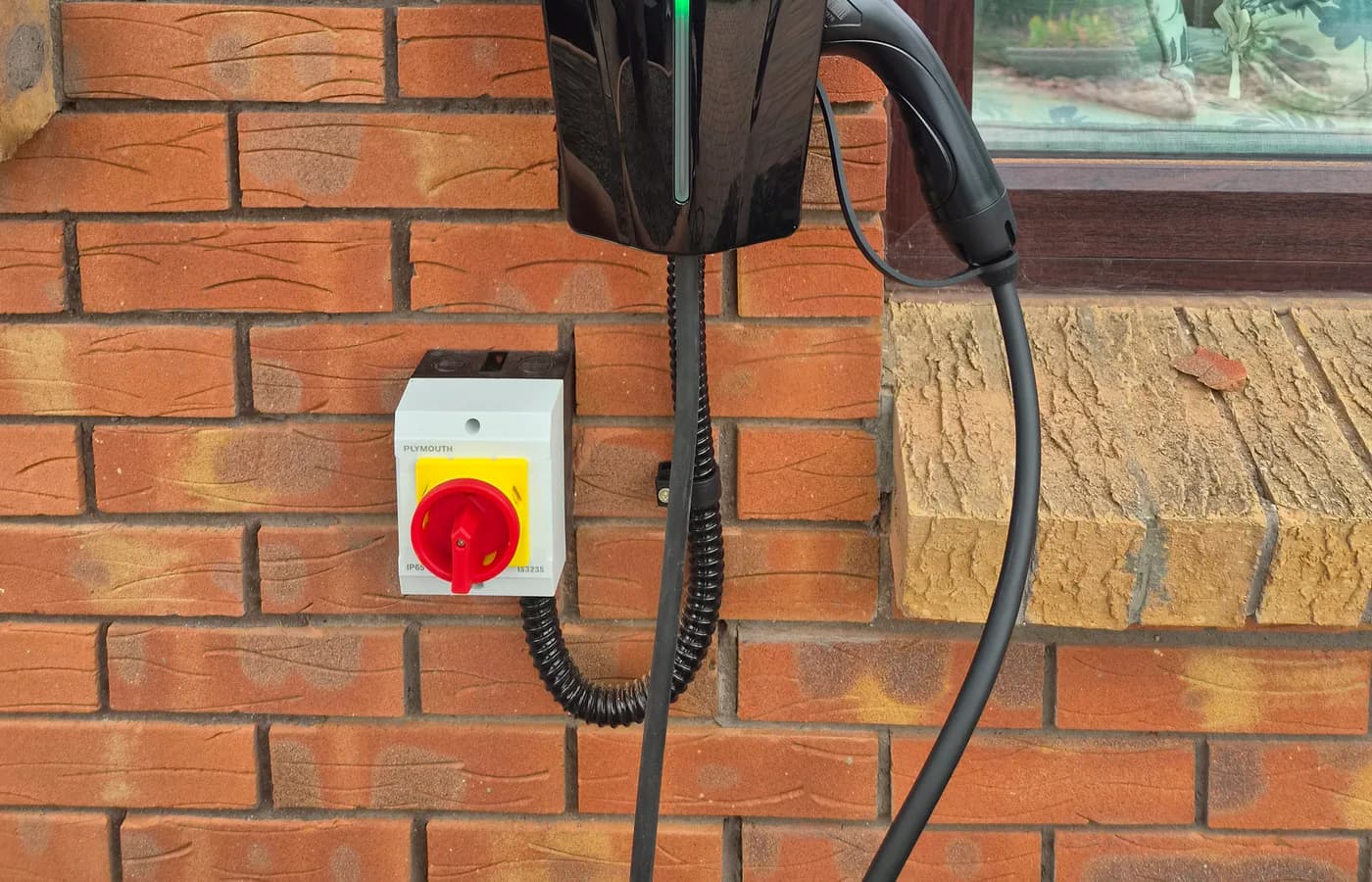

The charger we install in your home
Every Volt Éire installation includes the BENY 7.4 kW smart home charger — single-phase, 32 A, with a 5-metre tethered Type 2 cable. Smart enough to schedule off-peak charging from your phone; simple enough to just plug in and go.
It's included in our fixed price of €1,299 all-in. You receive €300 back from SEAI after installation, bringing your net cost to €999.
7.4 kW
Single-phase
32 A
AC 230V ±10%
5 m Type 2
Tethered cable
IP65
Indoor or outdoor
Smart, but only when you want it
You can use the charger as a simple plug-and-go unit on day one. When you're ready, the BENY Z-BOX app on your phone unlocks scheduled charging, RFID management, history and remote start.
Z-BOX is the manufacturer's app — we don't require an account with us to use your charger.
OCPP 1.6J
Open-protocol smart charger — works with the BENY cloud and any OCPP 1.6J back-end (e.g. Monta, ChargeHQ).
Works without internet
No network needed for daily charging. RFID cards or a tap on the app via Bluetooth get you going even when Wi-Fi is down.
Solar-ready (optional add-on)
Compatible with the BENY DLB box for solar PV integration — charge from excess solar, hybrid mode, or fixed grid limit. Ask us if you have panels.
Free app · iOS & Android
Take control with the Z-BOX app
Z-BOX is the official BENY app for the charger. It pairs directly over Bluetooth the first time, then connects to your home Wi-Fi for remote control. No subscription, no ads, no data collection — the publisher confirms “the developer does not collect any data from this app”.
- Start, stop, or pause charging from anywhere.
- Schedule a single window or a different plan for each weekday.
- Set a kWh cap per session if you only want a top-up.
- See live current, voltage and power; review the last 20 days plus a 12-month rollup.
- Manage RFID cards and adjust the max charging current up to 32 A.
- Receive firmware updates over the air.
Published by Zhejiang Benyi New Energy Technology Co., Ltd..
Full specifications
The BENY BCP-A2N-P is the residential model in BENY's OCPP charger lineup. Below is what you get with every Volt Éire installation.
- Make / model
- BENY (Zhejiang Benyi New Energy) — BCP-A2N-P
- Maximum power
- 7.4 kW
- Maximum current
- 32 A
- Input voltage
- AC 230V ±10%, single-phase
- Frequency
- 50/60 Hz
- Cable
- 5 m tethered, Type 2 (Mennekes) plug
- Charging protocol
- OCPP 1.6J
- Operating mode
- Mode 3 (IEC 61851-1, IEC 61851-21-2)
- Connectivity
- Wi-Fi · Bluetooth · Ethernet · 4G (optional)
- Authorisation
- RFID (2× cards included), app remote start, plug-and-charge
- Display
- LED status ring
- Metering
- Built-in MID-grade metering chip
- Leakage detection
- Type B (built-in)
- Operating temperature
- −30°C to +55°C
- Operating altitude
- Up to 2,000 m
- IP rating
- IP65 (suitable for outdoor wall mounting)
- Warranty
- 3 years (parts) — meets OZEV minimum
What's in the box
We bring everything to your installation — you don't need to buy anything extra. Your installer fits the unit to your wall, wires it into your fuseboard, and commissions it before they leave.
- BENY BCP-A2N-P charger unit (5 m tethered Type 2 cable attached)
- Wall mounting bracket and position-template card
- 2× RFID authorisation cards
- M32×1.5 waterproof cable gland
- M6 / M4 mounting screws and wall anchors
Built-in protections
Ten layers of automatic safety, on top of the dedicated RCD and breaker we install at your fuseboard. The charger watches itself and stops the moment something looks wrong.
Leakage protection
Built-in Type B residual current detection
Over-current protection
Stops charging if the load exceeds the safe limit
Ground protection
Refuses to start if earthing is not detected
Over- / under-voltage
Pauses charging when supply voltage is out of spec
Contactor adhesion
Detects welded contactors and isolates the charger
Reverse-polarity
Detects neutral / live wires connected the wrong way
Over-temperature
Throttles or stops if the unit gets too hot
CP signal anomaly
Verifies the control-pilot handshake with your car
Lightning protection
Surge protection on the AC input
Cover-open detection
Disables the unit if the enclosure is opened
Certified, tested, and grant-eligible
Every model we install is on the SEAI Smart Charger register, so your €300 grant goes through without friction. The unit is also CE and UKCA marked and OZEV-approved.
SEAI Smart Charger register
Approved for the €300 SEAI home charger grant.
OZEV approved
Meets UK OZEV residential and commercial chargepoint requirements.
CE marked (EU)
TÜV Rheinland — Radio Equipment Directive 2014/53/EU.
UKCA marked (UK)
TÜV Rheinland UK — Radio Equipment Regulations 2017.
IEC 61851-1 / 21-2
Conforms to international EV-charging conductive-charging standards.
3-year manufacturer warranty — meets the OZEV minimum and exceeds the SEAI requirement. We handle warranty claims with the manufacturer on your behalf.
Documentation
Want to read the manual before you commit? Here's the official documentation from the manufacturer.
Looking for the wiring and installation manual? Your installer brings it on the day. Customers booked with us can also access full how-to guides from their dashboard after installation.
Need a commercial unit?
The page above covers our home installation product. For workplace, fleet, or multi-bay commercial installations, BENY also makes a 22 kW dual-cable unit on the SEAI commercial grant — get in touch and we'll quote separately.
Talk to us about commercialReady to get yours installed?
Upload six quick photos of your home and we'll confirm Standard pricing within 24 hours. Most Irish homes qualify.
